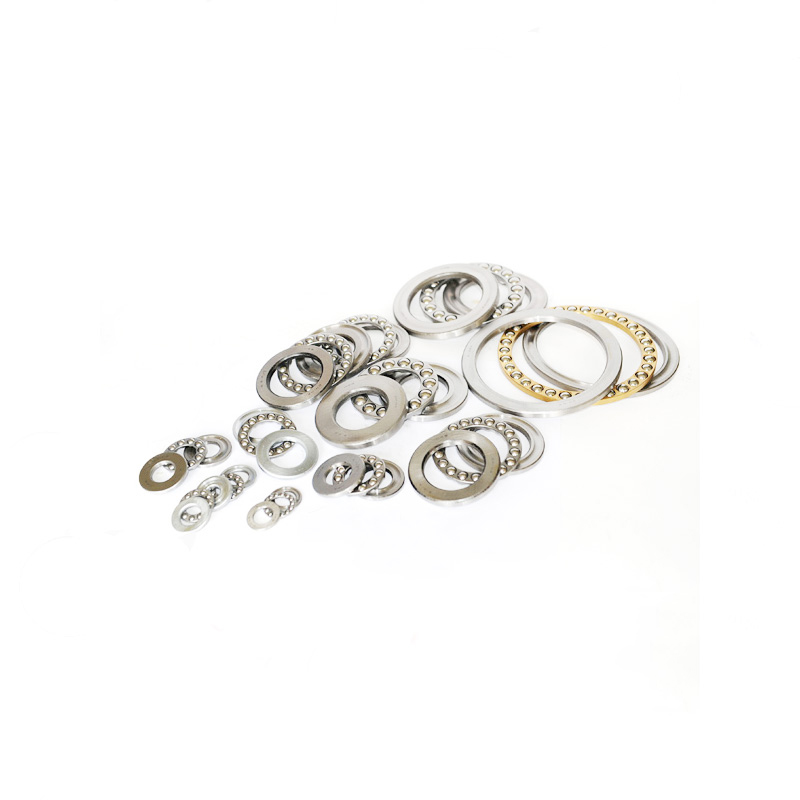

thrust ball bearing
thrust ball bearing consists of a shaft washer, a housing washer and a steel ball with a cage. The shaft washer is used to fix the shaft, and the housing washer is used to fix the parts outside the shaft. Usually, the material of the two washers and the ball is chrome steel, and the material of the cage is brass or stainless steel.
Compared with ordinary radial ball bearings, thrust ball bearings cannot bear too much radial load like radial ball bearings. Small thrust ball bearings are only desi
Compared with ordinary radial ball bearings, thrust ball bearings cannot bear too much radial load like radial ball bearings. Small thrust ball bearings are only desi
| Model | raceway form | inner diameter of shaft ring (d) | seat ring (D) | thickness (H) | steel ball quantity/pc | ball diameter/mm | weight (g) |
| F2-6 | flat raceway | 2 | 6 | 3 | 6 | 1 | 0.6 |
| F2.5-6M | groove raceway | 2.5 | 6 | 3 | 6 | 1.2 | 0.8 |
| F2.5-7 | flat raceway | 2.5 | 7 | 3.5 | 6 | 1.2 | 0.9 |
| F2.5-7M | groove raceway | 2.5 | 7 | 3.5 | 7 | 1.3 | 0.8 |
| F3-6M | groove raceway | 3 | 6 | 2.8 | 6 | 1 | 0.85 |
| F3-8 | flat raceway | 3 | 8 | 3.5 | 6 | 1.588 | 0.6 |
| F3-8M | groove raceway | 3 | 8 | 3.5 | 6 | 1.588 | 0.9 |
| F4-8M | groove raceway | 4 | 8 | 3.3 | 7 | 1.3 | 0.9 |
| F4-9 | flat raceway | 4 | 9 | 4 | 6 | 1.588 | 1.5 |
| F4-9M | groove raceway | 4 | 9 | 4 | 6 | 1.588 | 1.2 |
| F4-10 | flat raceway | 4 | 10 | 4 | 6 | 1.588 | 2 |
| F4-10M | groove raceway | 4 | 10 | 4 | 6 | 1.588 | 1.5 |
| F5-10M | groove raceway | 5 | 10 | 4 | 7 | 1.588 | 1.6 |
| F5-11 | flat raceway | 5 | 11 | 4.5 | 7 | 1.588 | 2.4 |
| F5-11M | groove raceway | 5 | 11 | 4.5 | 7 | 1.588 | 1.9 |
| F5-12M | groove raceway | 5 | 12 | 4 | 7 | 1.588 | 2.1 |
| F6-12 | flat raceway | 6 | 12 | 4.5 | 8 | 2 | 2.5 |
| F6-12M | groove raceway | 6 | 12 | 4.5 | 8 | 2 | 2.2 |
| F6-14M | groove raceway | 6 | 14 | 5 | 8 | 2.381 | 3.5 |
| F7-13M | groove raceway | 7 | 13 | 4.5 | 9 | 2 | 2.6 |
| F7-15 | flat raceway | 7 | 15 | 5 | 8 | 2.5 | 4.4 |
| F7-15M | groove raceway | 7 | 15 | 5 | 8 | 2.5 | 4.3 |
| F7-17M | groove raceway | 7 | 17 | 6 | 8 | 2.381 | 6.5 |
| F8-16 | flat raceway | 8 | 16 | 5 | 9 | 3 | 5 |
| F8-16M | groove raceway | 8 | 16 | 5 | 9 | 3 | 4.5 |
| F8-19M | groove raceway | 8 | 19 | 7 | 8 | 3.175 | 9.1 |
| F9-17 | flat raceway | 9 | 17 | 5 | 10 | 2.381 | 5.1 |
| F9-20M | groove raceway | 9 | 20 | 7 | 8 | 3.175 | 9.9 |
| F10-18 | flat raceway | 10 | 18 | 5.5 | 10 | 2.381 | 6 |
| F10-18M | groove raceway | 10 | 18 | 5.5 | 10 | 2.381 | 5.4 |
