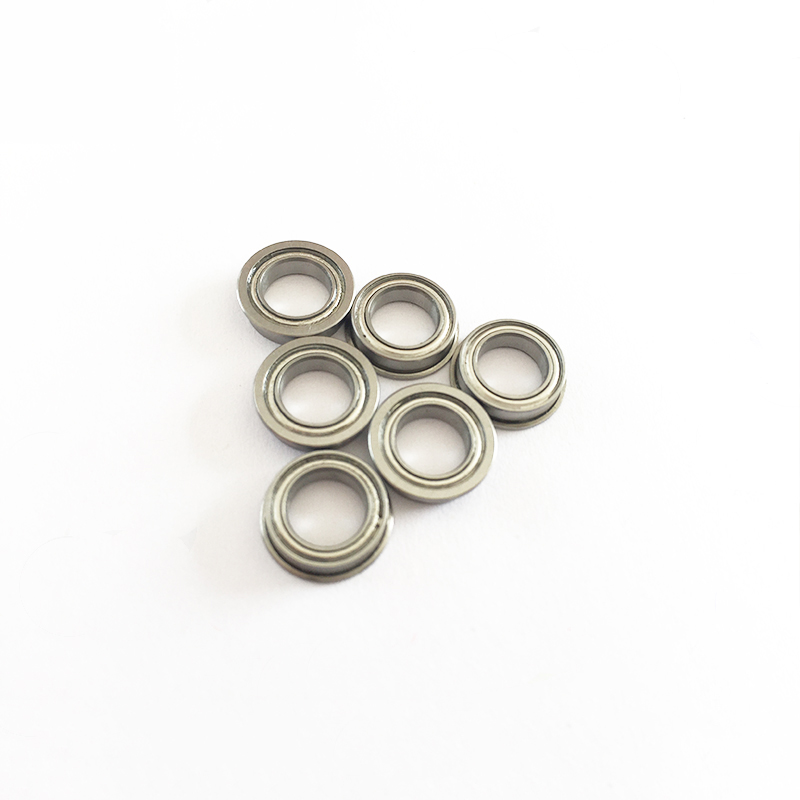

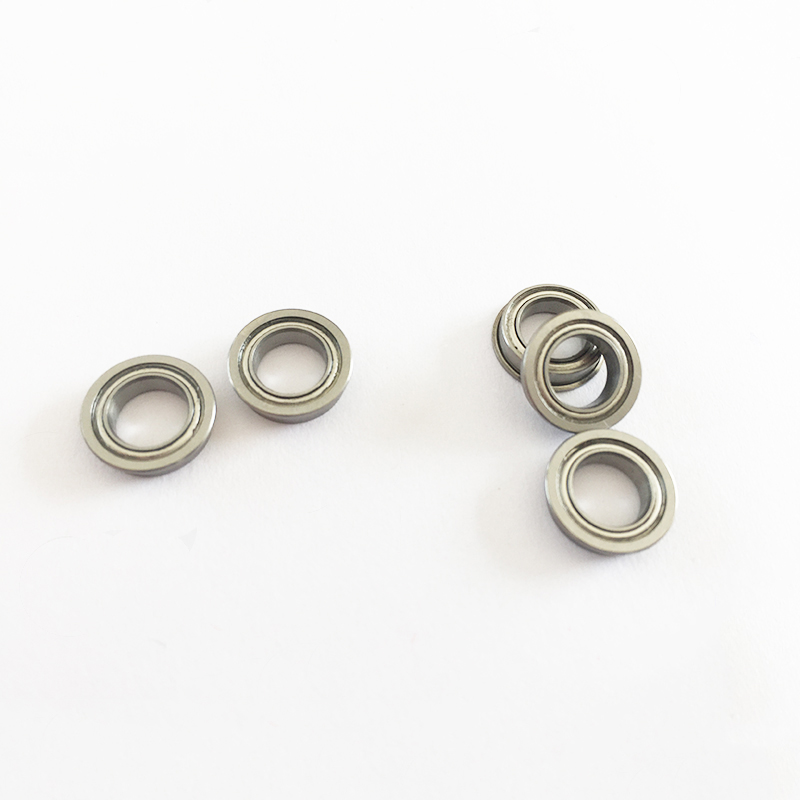

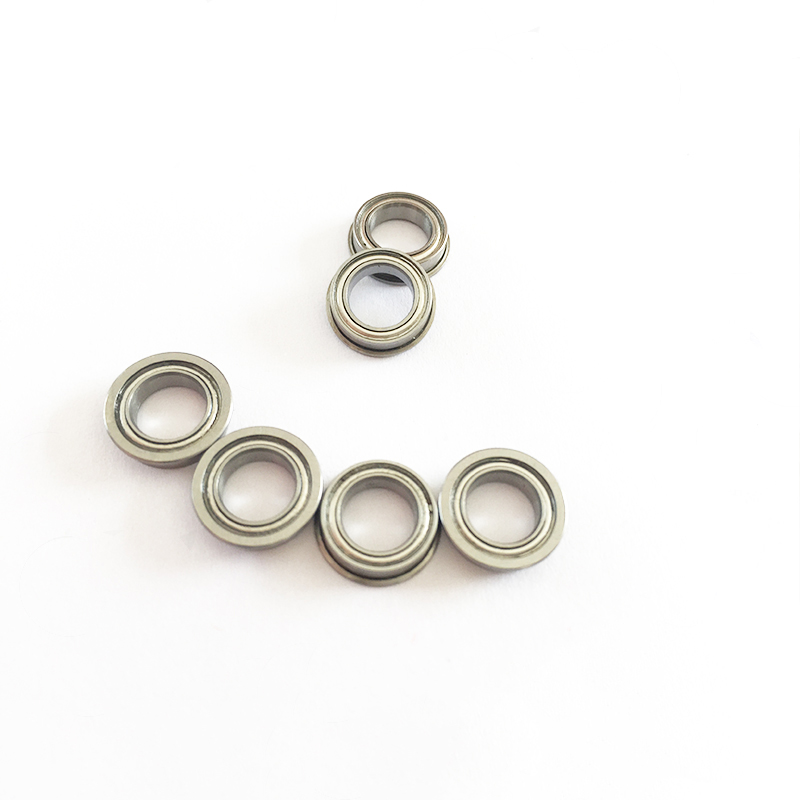

Stainless Steel Metric Flange Miniature Bearings
Metric Flange Miniature Bearings are also known as Metric Flange Miniature Ball Bearings. SXD produces stainless steel metric flanged small bearings in full metric sizes. The stainless steel material can be 440(9Cr18), 420(9Cr13), or 316 stainless steel. Compared with ordinary bearing steel metric flange miniature bearings, stainless steel metric flange miniature ball bearings can prevent corrosion caused by certain acids or moisture. Stainless steel metric miniature ball bearings have stable op
| Model | sealing form | inner diameter(d) | outside diameter(D) | width(B) | Ball diameter(mm) | steel ball quantity | Weight(g) |
| SF681X | open | 1.5 | 4 | 1.2 | 0.6 | 7 | 0.1 |
| SF681xzz | dust cover | 1.5 | 4 | 2 | 0.6 | 7 | 0.14 |
| SF691X | open | 1.5 | 5 | 2 | 0.6 | 6 | 0.2 |
| SF691XZZ | dust cover | 1.5 | 5 | 2.6 | 0.6 | 6 | 0.25 |
| SF601X | open | 1.5 | 6 | 2.5 | 1.2 | 6 | 0.31 |
| SF601XZZ | dust cover | 1.5 | 6 | 3 | 1.2 | 6 | 0.4 |
| SF682 | open | 2 | 5 | 1.5 | 0.8 | 6 | 0.15 |
| SF682zz | dust cover | 2 | 5 | 2.3 | 0.8 | 6 | 0.2 |
| SF682-2RS | rubber cover | 2 | 5 | 2.3 | 0.8 | 6 | 0.2 |
| SMF52 | open | 2 | 5 | 2 | 0.8 | 6 | 0.14 |
| SMF52ZZ | dust cover | 2 | 5 | 2.5 | 0.8 | 6 | 0.2 |
| SMF52-2RS | rubber cover | 2 | 5 | 2.5 | 0.8 | 6 | 0.2 |
| SF692 | open | 2 | 6 | 2.3 | 1.2 | 6 | 0.28 |
| SF692ZZ | dust cover | 2 | 6 | 3 | 1.2 | 6 | 0.35 |
| SF692-2RS | rubber cover | 2 | 6 | 3 | 1.2 | 6 | 0.35 |
| SMF62 | open | 2 | 6 | 2.5 | 1.2 | 6 | 0.28 |
| SMF62ZZ | dust cover | 2 | 6 | 2.5 | 1.2 | 6 | 0.33 |
| SMF62-2RS | rubber cover | 2 | 6 | 2.5 | 1.2 | 6 | 0.33 |
| SMF72 | open | 2 | 7 | 2.5 | 1.2 | 7 | 0.43 |
| SMF72ZZ | dust cover | 2 | 7 | 3 | 1.2 | 7 | 0.53 |
| SMF72-2RS | rubber cover | 2 | 7 | 3 | 1.2 | 7 | 0.53 |
| SF602 | open | 2 | 7 | 2.8 | 1.2 | 7 | 0.5 |
| SF602ZZ | dust cover | 2 | 7 | 3.5 | 1.2 | 7 | 0.6 |
| SF602-2RS | rubber cover | 2 | 7 | 3.5 | 1.2 | 7 | 0.6 |
| SF682X | open | 2.5 | 6 | 1.8 | 0.8 | 8 | 0.2 |
| SF682XZZ | dust cover | 2.5 | 6 | 2.6 | 0.8 | 8 | 0.35 |
| SF682X-2RS | rubber cover | 2.5 | 6 | 2.6 | 0.8 | 8 | 0.35 |
| SF692X | open | 2.5 | 7 | 2.5 | 1.2 | 7 | 0.4 |
| SF692XZZ | dust cover | 2.5 | 7 | 3.5 | 1.2 | 7 | 0.55 |
| SF692X-2RS | rubber cover | 2.5 | 7 | 3.5 | 1.2 | 7 | 0.55 |
| SMF82X | open | 2.5 | 8 | 2.5 | 1.588 | 6 | 0.52 |
| SMF82XZZ | dust cover | 2.5 | 8 | 2.5 | 1.588 | 6 | 0.52 |
| SMF82X-2RS | rubber cover | 2.5 | 8 | 2.5 | 1.588 | 6 | 0.52 |
| SF602X | open | 2.5 | 8 | 2.8 | 1.588 | 6 | 0.61 |
| SF602XZZ | dust cover | 2.5 | 8 | 4 | 1.588 | 6 | 0.85 |
| SF602X-2RS | rubber cover | 2.5 | 8 | 4 | 1.588 | 6 | 0.85 |
| SMF63 | open | 3 | 6 | 2 | 0.8 | 8 | 0.2 |
| SMF63ZZ | dust cover | 3 | 6 | 2.5 | 0.8 | 8 | 0.28 |
| SMF63-2RS | rubber cover | 3 | 6 | 2.5 | 0.8 | 8 | 0.28 |
| SF683 | open | 3 | 7 | 2 | 1 | 8 | 0.32 |
| SF683ZZ | dust cover | 3 | 7 | 3 | 1 | 8 | 0.45 |
| SF683-2RS | rubber cover | 3 | 7 | 3 | 1 | 8 | 0.45 |
| SMF83 | open | 3 | 8 | 2.5 | 1.2 | 7 | 0.51 |
| SMF83ZZ | dust cover | 3 | 8 | 3 | 1.2 | 7 | 0.67 |
| SMF83-2RS | rubber cover | 3 | 8 | 3 | 1.2 | 7 | 0.67 |
| SF693 | open | 3 | 8 | 3 | 1.2 | 7 | 0.6 |
| SF693ZZ | dust cover | 3 | 8 | 4 | 1.2 | 7 | 0.8 |
| SF693-2RS | rubber cover | 3 | 8 | 4 | 1.2 | 7 | 0.8 |
| SMF93 | open | 3 | 9 | 2.5 | 1.588 | 6 | 0.75 |
| SMF93ZZ | dust cover | 3 | 9 | 4 | 1.588 | 6 | 1.15 |
| SMF93-2RS | rubber cover | 3 | 9 | 4 | 1.588 | 6 | 1.15 |
| SF603 | open | 3 | 9 | 3 | 1.588 | 6 | 0.84 |
| SF603ZZ | dust cover | 3 | 9 | 5 | 1.588 | 6 | 1.13 |
| SF603-2RS | rubber cover | 3 | 9 | 5 | 1.588 | 6 | 1.13 |
| SF623 | open | 3 | 10 | 4 | 1.588 | 7 | 1.45 |
| SF623ZZ | dust cover | 3 | 10 | 4 | 1.588 | 7 | 1.65 |
| SF623-2RS | rubber cover | 3 | 10 | 4 | 1.588 | 7 | 1.65 |
| SMF74 | open | 4 | 7 | 2 | 1 | 8 | 0.23 |
| SMF74ZZ | dust cover | 4 | 7 | 2.5 | 1 | 8 | 0.33 |
| SMF74-2RS | rubber cover | 4 | 7 | 2.5 | 1 | 8 | 0.33 |
| SMF84 | open | 4 | 8 | 2 | 1.2 | 7 | 0.39 |
| SMF84ZZ | dust cover | 4 | 8 | 3 | 1.2 | 7 | 0.56 |
| SMF84-2RS | rubber cover | 4 | 8 | 3 | 1.2 | 7 | 0.56 |
| SF684 | open | 4 | 9 | 2.5 | 1.588 | 7 | 0.65 |
| SF684ZZ | dust cover | 4 | 9 | 4 | 1.588 | 7 | 1 |
| SF684-2RS | rubber cover | 4 | 9 | 4 | 1.588 | 7 | 1 |
| SMF104 | open | 4 | 10 | 3 | 1.588 | 8 | 0.96 |
| SMF104ZZ | dust cover | 4 | 10 | 4 | 1.588 | 8 | 1.33 |
| SMF104-2RS | rubber cover | 4 | 10 | 4 | 1.588 | 8 | 1.33 |
| SF694 | open | 4 | 11 | 4 | 2 | 7 | 1.69 |
| SF694ZZ | dust cover | 4 | 11 | 4 | 2 | 7 | 1.75 |
| SF694-2RS | rubber cover | 4 | 11 | 4 | 2 | 7 | 1.75 |
| SF604 | open | 4 | 12 | 4 | 2 | 7 | 2.19 |
| SF604ZZ | dust cover | 4 | 12 | 4 | 2 | 7 | 2.34 |
| SF604-2RS | rubber cover | 4 | 12 | 4 | 2 | 7 | 2.34 |
| SF624 | open | 4 | 13 | 5 | 2.381 | 7 | 3.1 |
| SF624ZZ | dust cover | 4 | 13 | 5 | 2.381 | 7 | 3.2 |
| SF624-2RS | rubber cover | 4 | 13 | 5 | 2.381 | 7 | 3.2 |
| SF634 | open | 4 | 16 | 5 | 2.381 | 7 | 5.24 |
| SF634ZZ | dust cover | 4 | 16 | 5 | 2.381 | 7 | 5.44 |
| SF634-2RS | rubber cover | 4 | 16 | 5 | 2.381 | 7 | 5.44 |
| SMF85 | open | 5 | 8 | 2 | 1 | 8 | 0.25 |
| SMF85ZZ | dust cover | 5 | 8 | 2.5 | 1 | 8 | 0.34 |
| SMF85-2RS | rubber cover | 5 | 8 | 2.5 | 1 | 8 | 0.34 |
| SMF95 | open | 5 | 9 | 2.5 | 1.2 | 8 | 0.54 |
| SMF95ZZ | dust cover | 5 | 9 | 3 | 1.2 | 8 | 0.58 |
| SMF95-2RS | rubber cover | 5 | 9 | 3 | 1.2 | 8 | 0.58 |
| SMF105 | open | 5 | 10 | 3 | 1.2 | 8 | 0.58 |
| SMF105ZZ | dust cover | 5 | 10 | 4 | 1.2 | 8 | 0.62 |
| SMF105-2RS | rubber cover | 5 | 10 | 4 | 1.2 | 8 | 0.62 |
| SMF115 | open | 5 | 11 | 4 | 1.588 | 8 | 0.62 |
| SMF115ZZ | dust cover | 5 | 11 | 4 | 1.588 | 8 | 0.62 |
| SMF115-2RS | rubber cover | 5 | 11 | 4 | 1.588 | 8 | 0.62 |
| SF685 | open | 5 | 11 | 3 | 1.588 | 8 | 1.16 |
| SF685ZZ | dust cover | 5 | 11 | 5 | 1.588 | 8 | 1.93 |
| SF685-2RS | rubber cover | 5 | 11 | 5 | 1.588 | 8 | 1.93 |
| SF695 | open | 5 | 13 | 4 | 2 | 8 | 2.31 |
| SF695ZZ | dust cover | 5 | 13 | 4 | 2 | 8 | 2.39 |
| SF695-2RS | rubber cover | 5 | 13 | 4 | 2 | 8 | 2.39 |
| SF605 | open | 5 | 14 | 5 | 2.381 | 7 | 3.46 |
| SF605ZZ | dust cover | 5 | 14 | 5 | 2.381 | 7 | 3.75 |
| SF605-2RS | rubber cover | 5 | 14 | 5 | 2.381 | 7 | 3.75 |
| SF625 | open | 5 | 16 | 5 | 2.778 | 7 | 4.95 |
| SF625ZZ | dust cover | 5 | 16 | 5 | 2.778 | 7 | 5.1 |
| SF625-2RS | rubber cover | 5 | 16 | 5 | 2.778 | 7 | 5.1 |
| SF635 | open | 5 | 19 | 6 | 3.5 | 6 | 8.5 |
| SF635ZZ | dust cover | 5 | 19 | 6 | 3.5 | 6 | 8.89 |
| SF635-2RS | rubber cover | 5 | 19 | 6 | 3.5 | 6 | 8.89 |
| SMF106 | open | 6 | 10 | 2.5 | 1.2 | 10 | 0.55 |
| SMF106ZZ | dust cover | 6 | 10 | 3 | 1.2 | 10 | 0.7 |
| SMF106-2RS | rubber cover | 6 | 10 | 3 | 1.2 | 10 | 0.7 |
| SMF126 | open | 6 | 12 | 3 | 1.588 | 8 | 1.25 |
| SMF126ZZ | dust cover | 6 | 12 | 4 | 1.588 | 8 | 1.66 |
| SMF126-2RS | rubber cover | 6 | 12 | 4 | 1.588 | 8 | 1.66 |
| SF686 | open | 6 | 13 | 3.5 | 2 | 8 | 1.87 |
| SF686ZZ | dust cover | 6 | 13 | 5 | 2 | 8 | 2.68 |
| SF686-2RS | rubber cover | 6 | 13 | 5 | 2 | 8 | 2.68 |
| SF696 | open | 6 | 15 | 5 | 2.381 | 7 | 3.65 |
| SF696ZZ | dust cover | 6 | 15 | 5 | 2.381 | 7 | 3.85 |
| SF696-2RS | rubber cover | 6 | 15 | 5 | 2.381 | 7 | 3.85 |
| SF606 | open | 6 | 17 | 6 | 3.5 | 6 | 5.94 |
| SF606ZZ | dust cover | 6 | 17 | 6 | 3.5 | 6 | 6.89 |
| SF606-2RS | rubber cover | 6 | 17 | 6 | 3.5 | 6 | 6.89 |
| SF626 | open | 6 | 19 | 6 | 3.5 | 6 | 8.12 |
| SF626ZZ | dust cover | 6 | 19 | 6 | 3.5 | 6 | 8.65 |
| SF626-2RS | rubber cover | 6 | 19 | 6 | 3.5 | 6 | 8.65 |
| SF636 | open | 6 | 22 | 7 | 3.969 | 7 | 13.9 |
| SF636ZZ | dust cover | 6 | 22 | 7 | 3.969 | 7 | 14.5 |
| SF636-2RS | rubber cover | 6 | 22 | 7 | 3.969 | 7 | 14.5 |
| SMF117 | open | 7 | 11 | 2.5 | 1.2 | 9 | 0.59 |
| SMF117ZZ | dust cover | 7 | 11 | 3 | 1.2 | 9 | 0.71 |
| SMF117-2RS | rubber cover | 7 | 11 | 3 | 1.2 | 9 | 0.71 |
| SMF137 | open | 7 | 13 | 3 | 1.2 | 12 | 1.52 |
| SMF137ZZ | dust cover | 7 | 13 | 4 | 1.2 | 12 | 2.01 |
| SMF137-2RS | rubber cover | 7 | 13 | 4 | 1.2 | 12 | 2.01 |
| SF687 | open | 7 | 14 | 3.5 | 2 | 9 | 2.03 |
| SF687ZZ | dust cover | 7 | 14 | 5 | 2 | 9 | 2.95 |
| SF687-2RS | rubber cover | 7 | 14 | 5 | 2 | 9 | 2.95 |
| SF697 | open | 7 | 17 | 5 | 2 | 9 | 5.01 |
| SF697ZZ | dust cover | 7 | 17 | 5 | 2 | 9 | 5.26 |
| SF697-2RS | rubber cover | 7 | 17 | 5 | 2 | 9 | 5.26 |
| SF607 | open | 7 | 19 | 6 | 3.5 | 6 | 7.8 |
| SF607ZZ | dust cover | 7 | 19 | 6 | 3.5 | 6 | 8.24 |
| SF607-2RS | rubber cover | 7 | 19 | 6 | 3.5 | 6 | 8.24 |
| SF627 | open | 7 | 22 | 7 | 3.969 | 7 | 12.7 |
| SF627ZZ | dust cover | 7 | 22 | 7 | 3.969 | 7 | 13.1 |
| SF627-2RS | rubber cover | 7 | 22 | 7 | 3.969 | 7 | 13.1 |
| SF637 | open | 7 | 26 | 9 | 4.762 | 7 | 24.2 |
| SF637ZZ | dust cover | 7 | 26 | 9 | 4.762 | 7 | 25.8 |
| SF637-2RS | rubber cover | 7 | 26 | 9 | 4.762 | 7 | 25.8 |
| SMF128 | open | 8 | 12 | 2.5 | 1.2 | 12 | 0.7 |
| SMF128ZZ | dust cover | 8 | 12 | 3.5 | 1.2 | 12 | 0.99 |
| SMF128-2RS | rubber cover | 8 | 12 | 3.5 | 1.2 | 12 | 0.99 |
| SMF148 | open | 8 | 14 | 3.5 | 1.588 | 10 | 1.9 |
| SMF148ZZ | dust cover | 8 | 14 | 4 | 1.588 | 10 | 2.19 |
| SMF148-2RS | rubber cover | 8 | 14 | 4 | 1.588 | 10 | 2.19 |
| SF688 | open | 8 | 16 | 4 | 2 | 10 | 3.11 |
| SF688ZZ | dust cover | 8 | 16 | 5 | 2 | 10 | 4.05 |
| SF688-2RS | rubber cover | 8 | 16 | 5 | 2 | 10 | 4.05 |
| SF698 | open | 8 | 19 | 6 | 3.175 | 7 | 7.12 |
| SF698ZZ | dust cover | 8 | 19 | 6 | 3.175 | 7 | 7.57 |
| SF698-2RS | rubber cover | 8 | 19 | 6 | 3.175 | 7 | 7.57 |
| SF608 | open | 8 | 22 | 7 | 3.969 | 7 | 11.8 |
| SF608ZZ | dust cover | 8 | 22 | 7 | 3.969 | 7 | 12.9 |
| SF608-2RS | rubber cover | 8 | 22 | 7 | 3.969 | 7 | 12.9 |
| SF628 | open | 8 | 24 | 8 | 3.969 | 7 | 17.1 |
| SF628ZZ | dust cover | 8 | 24 | 8 | 3.969 | 7 | 18.5 |
| SF628-2RS | rubber cover | 8 | 24 | 8 | 3.969 | 7 | 18.5 |
| SF638 | open | 8 | 28 | 9 | 4.762 | 7 | 28.1 |
| SF638ZZ | dust cover | 8 | 28 | 9 | 4.762 | 7 | 30.3 |
| SF638-2RS | rubber cover | 8 | 28 | 9 | 4.762 | 7 | 30.3 |
| SF679 | open | 9 | 14 | 3 | 1.588 | 12 | 1.35 |
| SF679ZZ | dust cover | 9 | 14 | 4.5 | 1.588 | 12 | 1.98 |
| SF679-2RS | rubber cover | 9 | 14 | 4.5 | 1.588 | 12 | 1.98 |
| SF689 | open | 9 | 17 | 4 | 2 | 11 | 3.41 |
| SF689ZZ | dust cover | 9 | 17 | 5 | 2 | 11 | 4.38 |
| SF689-2RS | rubber cover | 9 | 17 | 5 | 2 | 11 | 4.38 |
| SF699 | open | 9 | 20 | 6 | 3.175 | 8 | 8.38 |
| SF699ZZ | dust cover | 9 | 20 | 7 | 3.175 | 8 | 8.54 |
| SF699-2RS | rubber cover | 9 | 20 | 7 | 3.175 | 8 | 8.54 |
| SF609 | open | 9 | 24 | 7 | 3.175 | 8 | 14.7 |
| SF609ZZ | dust cover | 9 | 24 | 7 | 3.175 | 8 | 16 |
| SF609-2RS | rubber cover | 9 | 24 | 7 | 3.175 | 8 | 16 |
| SF629 | open | 9 | 26 | 8 | 4.762 | 7 | 19 |
| SF629ZZ | dust cover | 9 | 26 | 8 | 4.762 | 7 | 21.8 |
| SF629-2RS | rubber cover | 9 | 26 | 8 | 4.762 | 7 | 21.8 |
| SF639 | open | 9 | 30 | 10 | 4.762 | 7 | 36.2 |
| SF639ZZ | dust cover | 9 | 30 | 10 | 4.762 | 7 | 37.1 |
| SF639-2RS | rubber cover | 9 | 30 | 10 | 4.762 | 7 | 37.1 |
